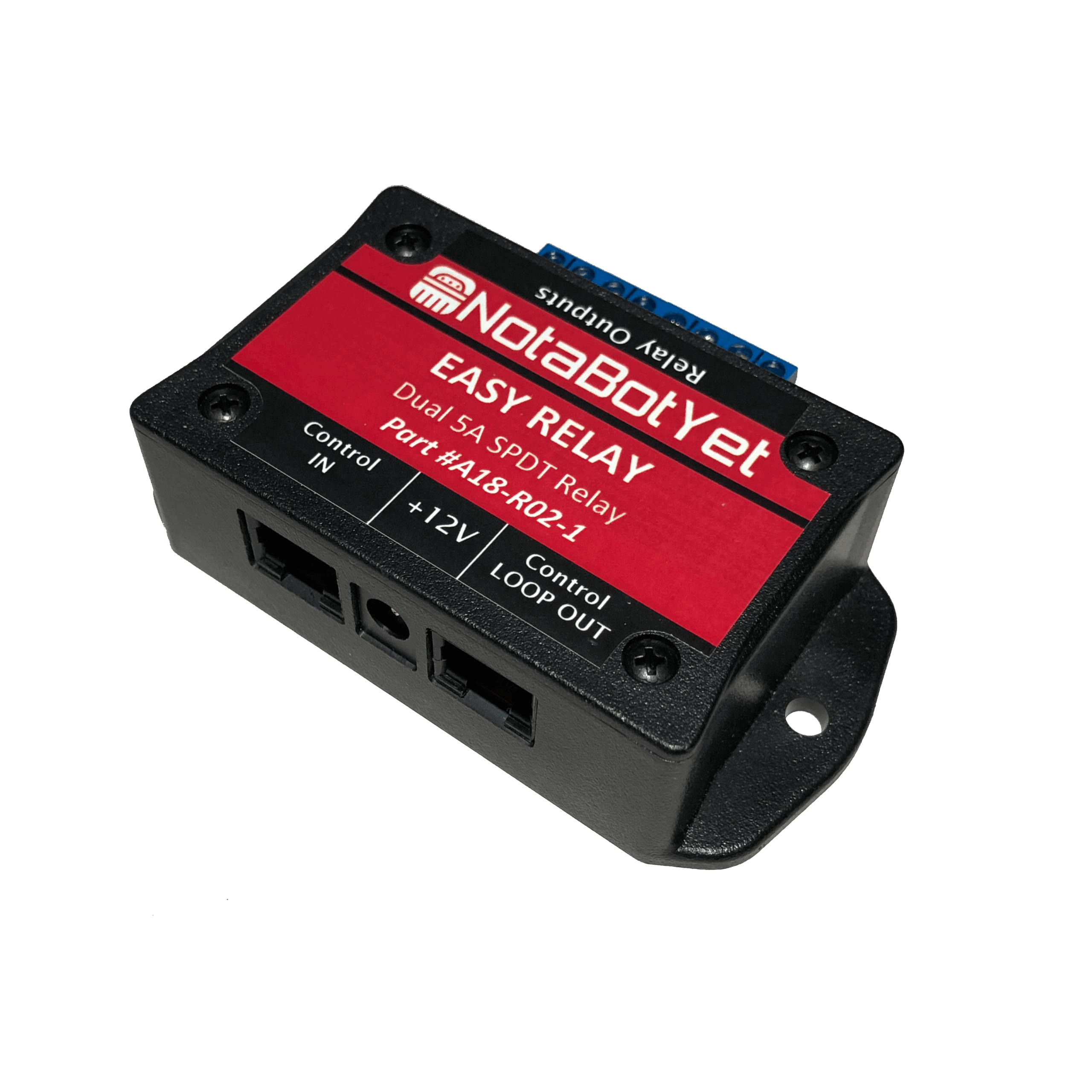

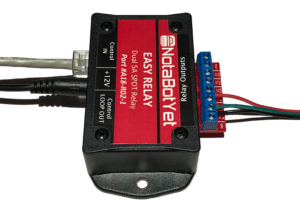

NotaBotYet Easy Relay
The NotaBotYet Easy Relay is a simple, plug-and-play GPIO relay interface designed for broadcast applications. Ideal for controlling on-air lights, cooling fans, indicators, and other devices, it integrates directly with Axia GPIO systems via the NotaBotYet Axia Breakout (Part #A15-B01-2) or with WheatNet-IP Logic connections.
Featuring two powerful 5A relays with normally open (NO) and normally closed (NC) contacts, the Easy Relay provides reliable switching for a wide range of control applications. The included 12V power supply powers the relay coils and can also be used to power external devices such as LED on-air lights.
GPIO inputs are provided via an RJ45 connector, allowing the use of standard Cat5e or Cat6 cabling for easy installation.
Key Features
- Two SPDT 5A relays
- NO and NC relay contacts
- Compatible with Axia GPIO and WheatNet-IP Logic
- RJ45 GPIO input connection
- Included 12V, 1A power supply

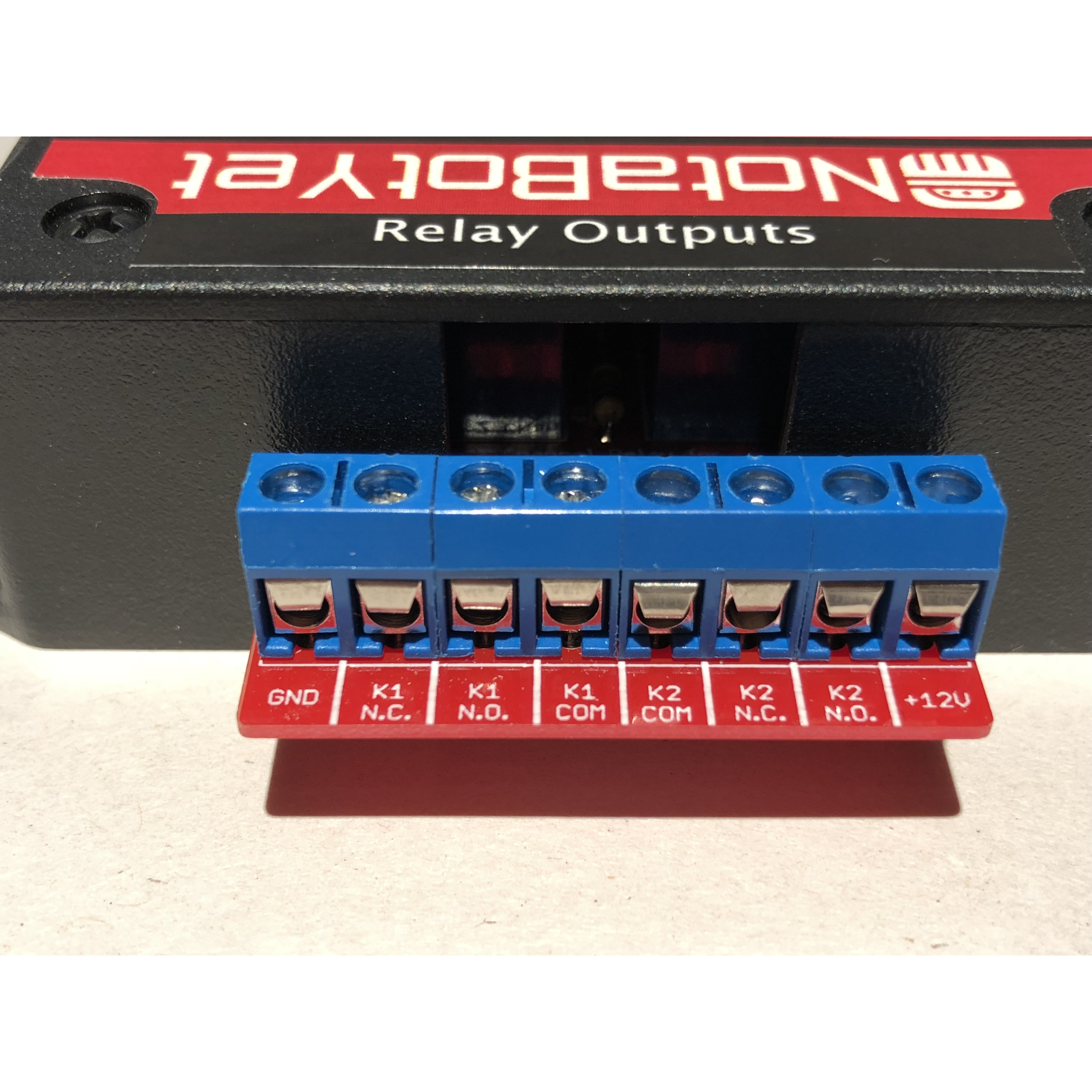

- 12V and ground available on barrier strip outputs
- Compact ABS enclosure
- Surface-mount design with mounting screws included
- Suitable for wall or under-counter mounting
- 2.1mm DC power connector
- Daisy-chain compatible with other NotaBotYet devices
The Easy Relay offers a reliable and cost-effective solution for adding GPIO-controlled switching to any broadcast facility.
