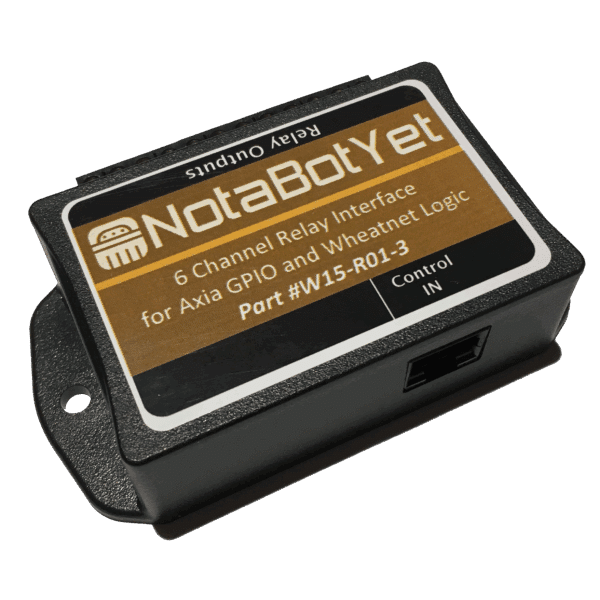

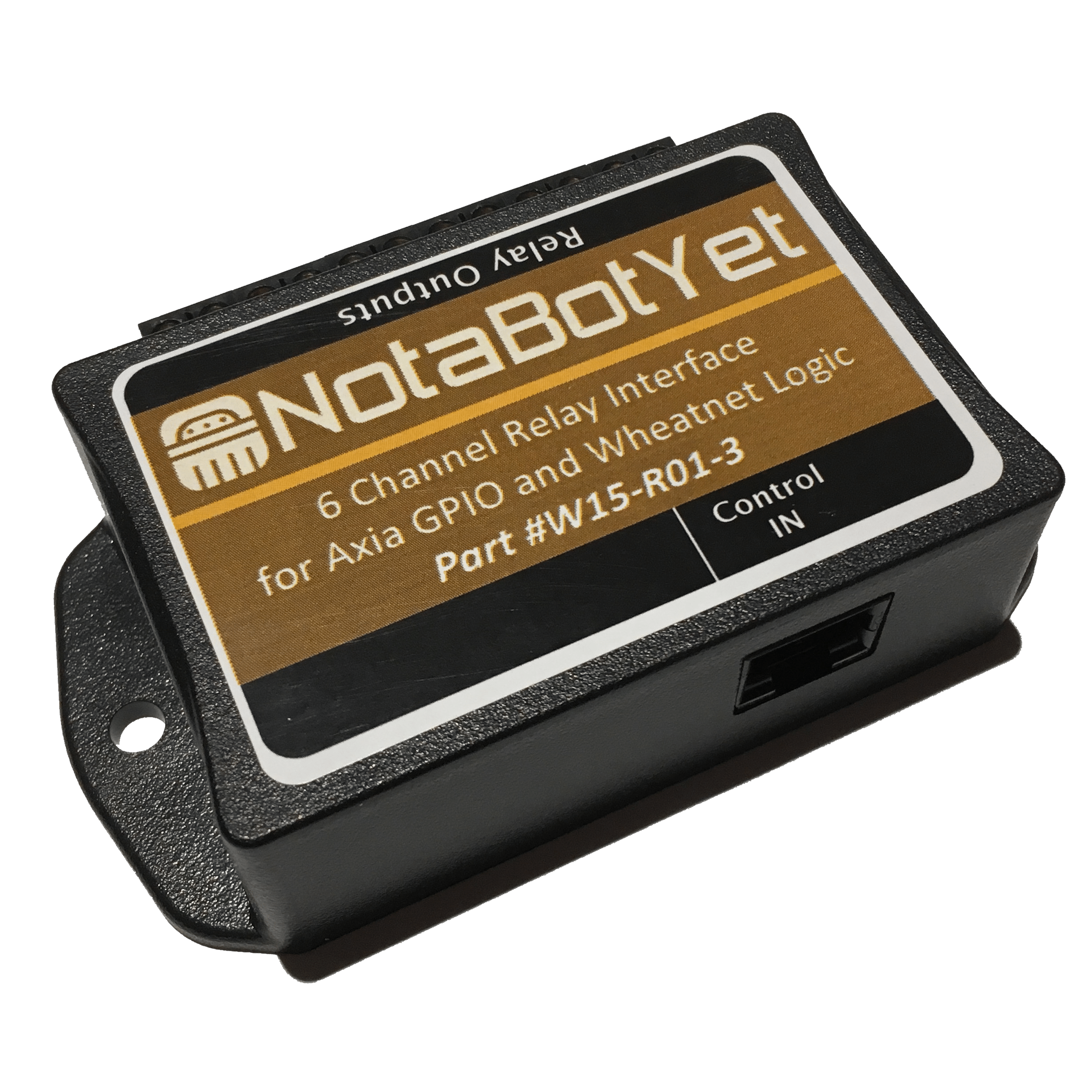

NotaBotYet 6 Channel 5V Relay Interface
The NotaBotYet 6 Channel 5V Relay Interface provides a simple way to control external devices from Wheatnet-IP® logic ports or the NotaBotYet Axia GPIO Breakout Board (Part #A15-B01-2).
Designed for broadcast and AV applications, it converts low-current GPIO outputs into six isolated relay outputs capable of switching loads up to 500mA. The interface is ideal for controlling microphone tally lights, LED ON AIR signs, and other low-voltage devices. It is powered directly from the connected GPIO port, so no external power supply is required for the interface.
Key Features
- Six isolated Form A reed relay outputs
- Switches load up to 500mA per relay
- Compatible with Wheatnet-IP® logic ports
- Works with the NotaBotYet Axia GPIO Breakout Board (five controllable relays)
- RJ45 connection using standard Cat5/Cat6 cabling
- Compatible with most 5V GPIO control systems
- Compact ABS enclosure with mounting screws included
The 6 Channel 5V Relay Interface offers a compact, reliable, and easy-to-install solution for professional broadcast and studio GPIO control.
