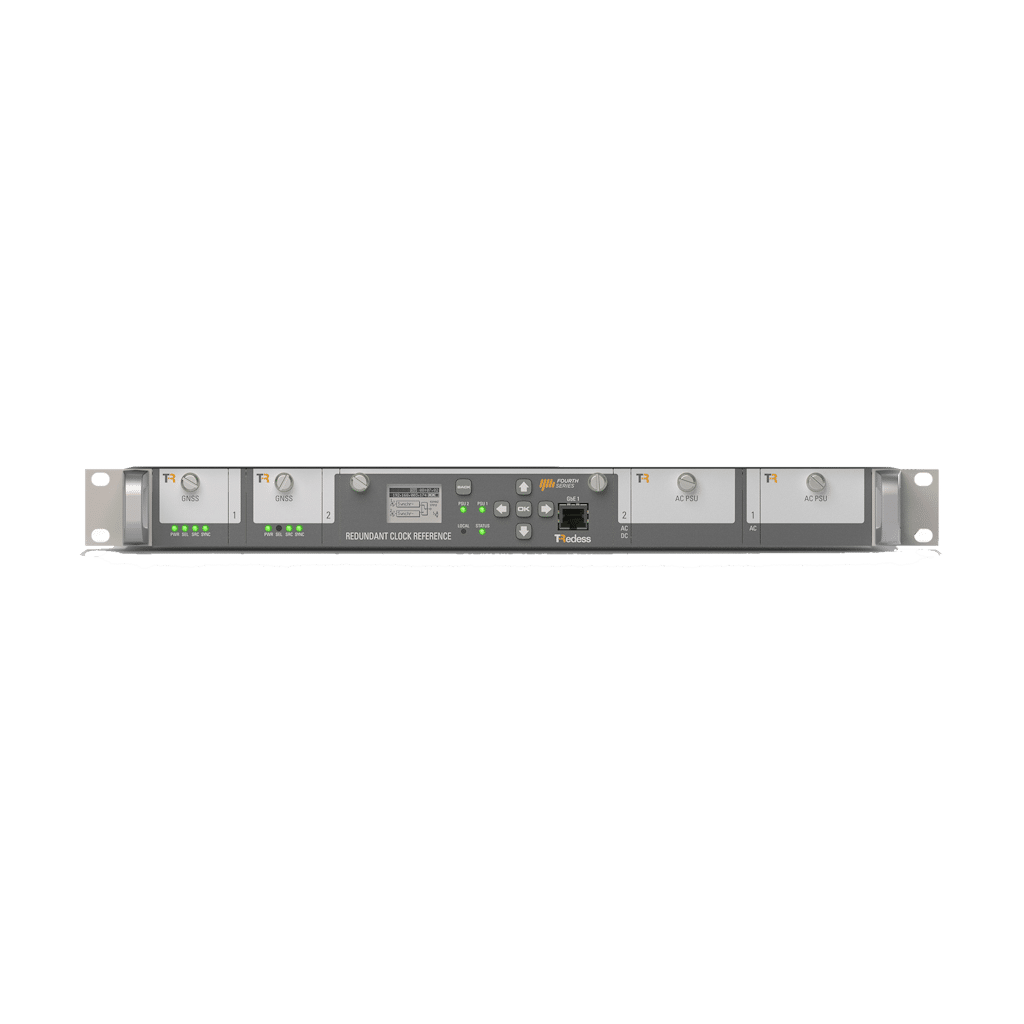

The TRedess Redundant Clock Reference is a highly reliable and fully modular synchronisation solution designed to provide accurate and stable time and frequency references for critical broadcast and telecommunications applications.
Featuring multi-band and multi-constellation GNSS technology, the system supports GPS, Galileo, GLONASS and BeiDou simultaneously, delivering exceptional robustness and the ability to track up to 184 satellites at the same time. Advanced protection against jamming and spoofing further enhances reliability in demanding environments.

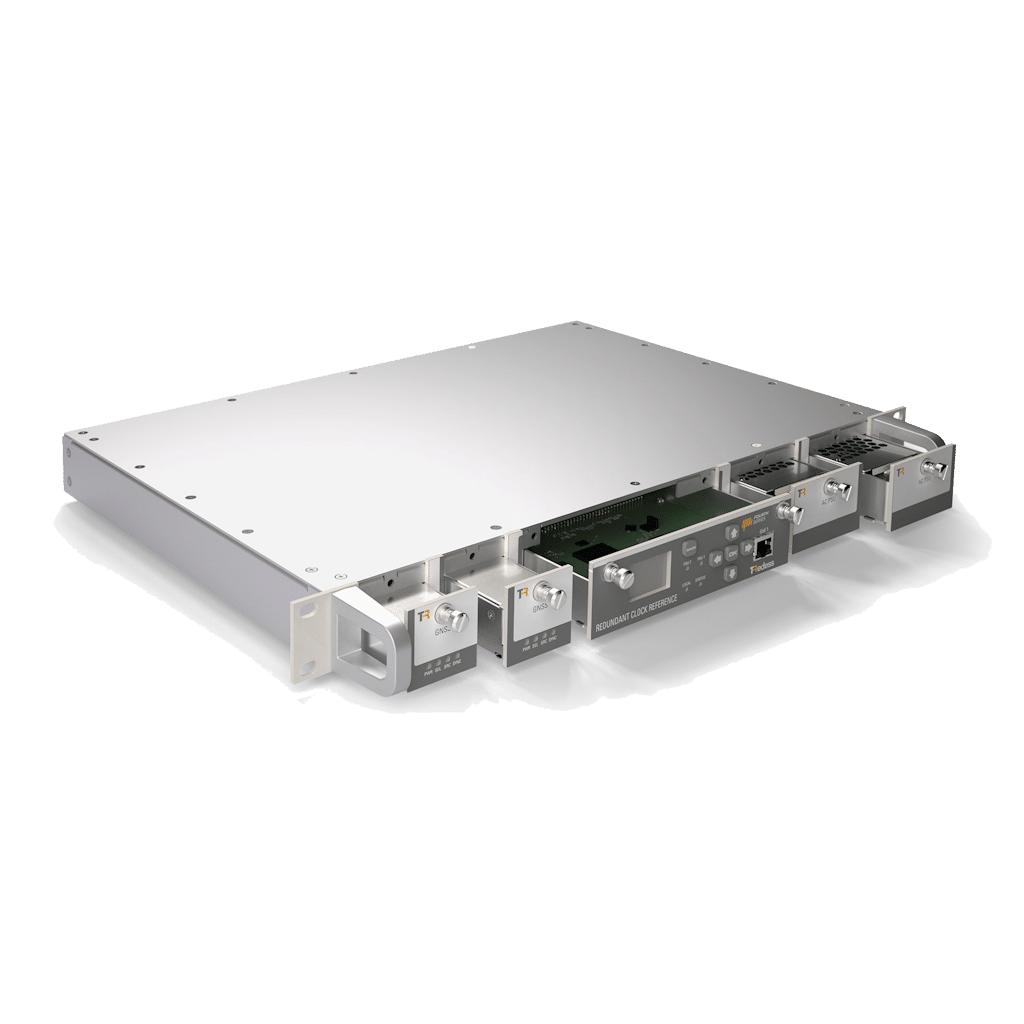

Designed for maximum uptime and scalability, the system supports redundant GNSS receivers, redundant OCXOs and redundant power supplies, all housed in a compact modular platform with hot-swappable front-access modules for easy maintenance and fast replacement.
The Redundant Clock Reference also supports IEEE 1588v2 Precision Time Protocol (PTP) operation, including Grandmaster, Boundary Clock and Slave modes, making it suitable for applications requiring precise synchronisation without direct satellite access.
Key Features
- Multi-band and multi-constellation GNSS support
- GPS, Galileo, GLONASS and BeiDou compatibility
- Tracks up to 184 satellites simultaneously
- Built-in anti-jamming and anti-spoofing protection
- Redundant GNSS receivers, OCXOs and power supplies
- Hot-swappable front-access modules
- Seamless switching between synchronisation sources

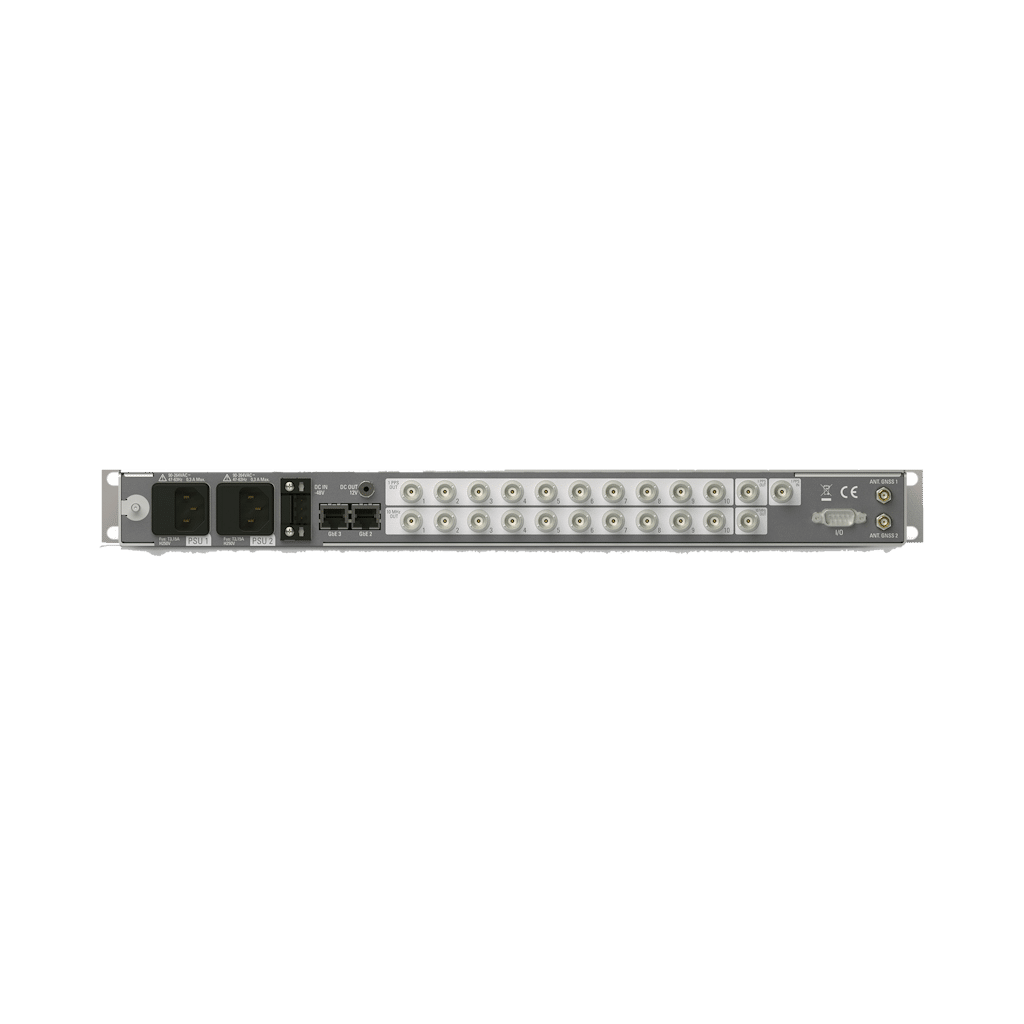

- Multiple 10MHz and 1PPS outputs
- IEEE 1588v2 PTP support
- Boundary Clock, Grandmaster and Slave operation modes
- Compact, scalable and modular architecture
- Intuitive web-based management interface
The TRedess Redundant Clock Reference delivers dependable and flexible synchronisation for SFN broadcast networks, telecommunications and other critical timing applications where accuracy and reliability are essential.
