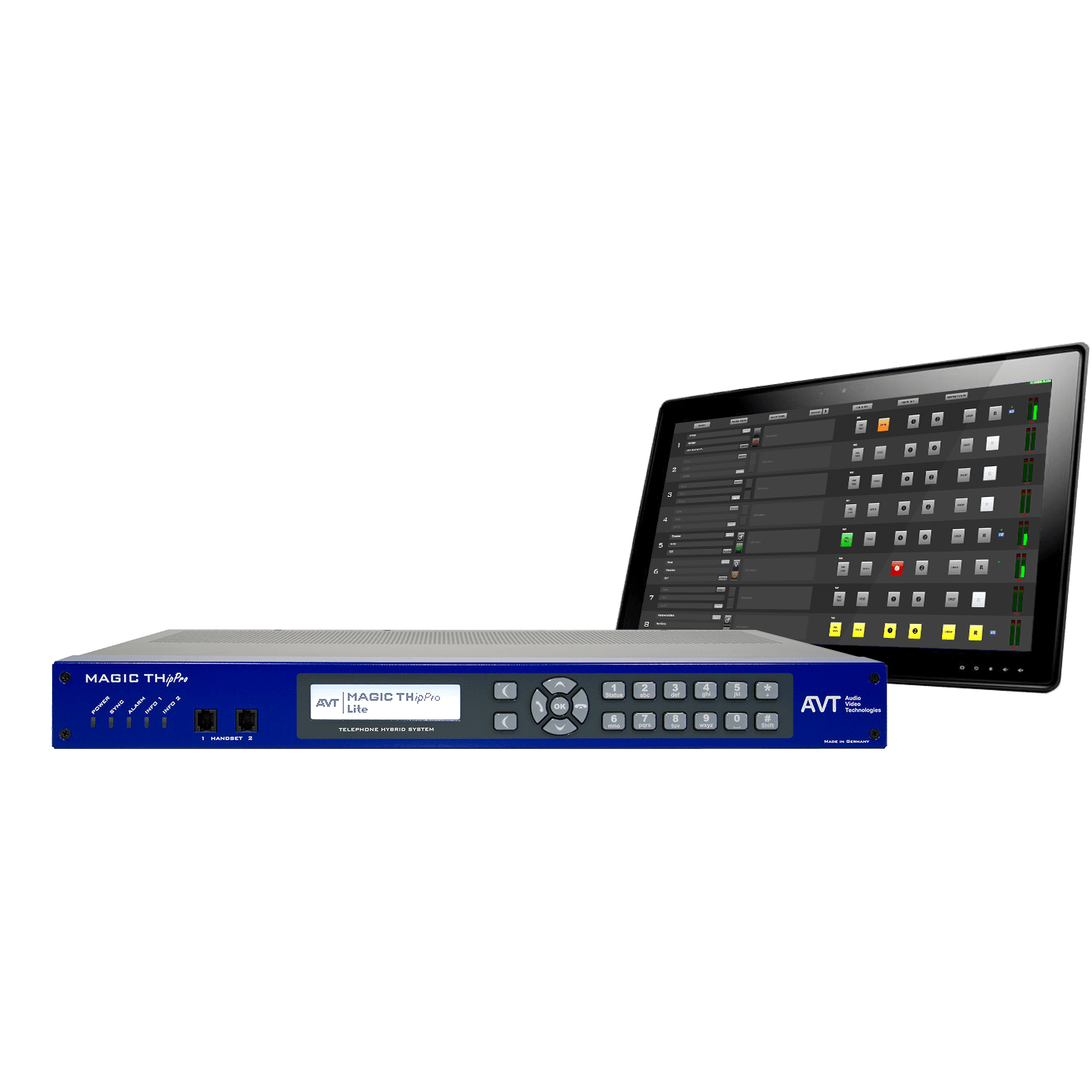

The MAGIC THipPro Lite Telephone Hybrid is a highly adaptable digital telephone hybrid offering 4 or 8 channels, making it suitable for a variety of professional telecommunication and broadcasting environments. With 4 or 8 integrated echo cancellers, expanders, and AGCs, the system ensures optimal audio quality for each channel. The hybrid features 4 or 8 individual hybrids, supporting both VoIP and POTS channels, and offers 4 digital audio channels with 2 AES/EBU interfaces. For greater flexibility, the system can accommodate up to 8 channels, and it also includes 2 analogue audio channels.

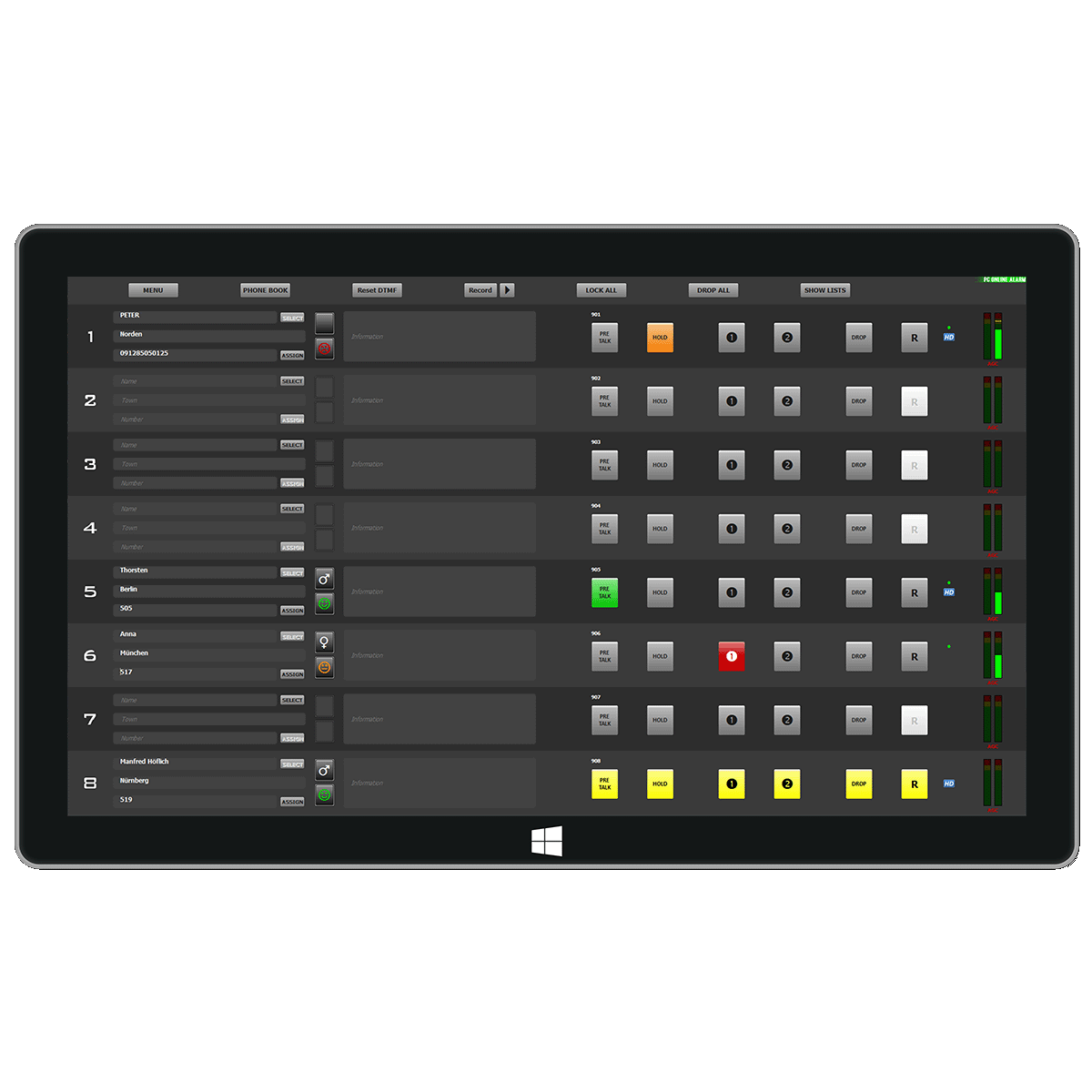

The MAGIC THipPro Lite is equipped with 2 handset/headset interfaces and 2 LAN interfaces, providing seamless integration and control. It also includes the MAGIC THipPro Lite Control Software (compatible with Windows 10/11), allowing easy configuration and monitoring. The unit supports conferencing functionality and features EMBER+ / DHD SetLogic compatibility, making it ideal for high-performance environments.
The hybrid is housed in a 19” x 1 U form factor and comes with an integrated wide-area power supply for reliable operation. Optional upgrades are available, including VoIP functionality for up to 4 channels with G.711 and G.722 support for standard and HD voice quality. Additional options include POTS line interfaces, a POTS/VoIP gateway, and VoIP & HD Voice modules, allowing customisation based on your specific needs.
