Description

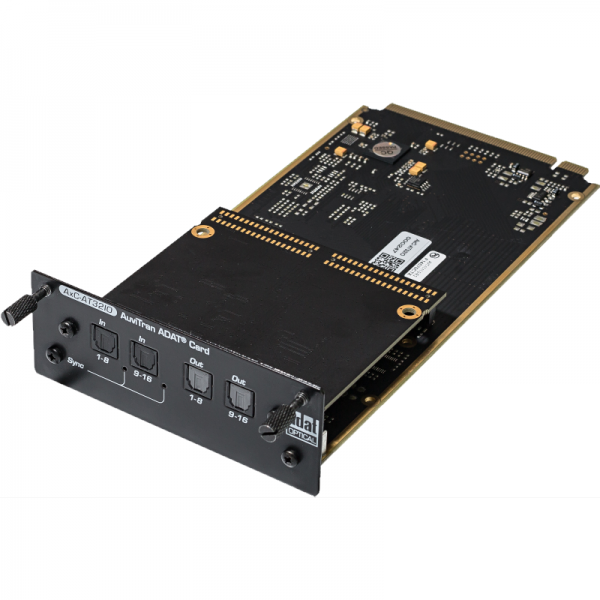

AxC-AT32IO card provides ADAT digital inputs and outputs interface to the AuviTran Audio ToolBox platform.
AxC-AT32IO features optical digital inputs and outputs connectors.
The AxC-AT32IO offers high end audio professional feature.
Clock Synchronization for the AuviTran Audio Toolbox can be selected from each input
Combined with other AuviTran Audio ToolBox cards, the AxC-AT32IO card opens exciting possibilities to the professional audio systems
AxC-AT32IO cards are fully compatible with both AVBx3 and AVBx7 Audio Toolbox for two kinds of applications
Live applications
Live concerts, live broadcast studios and OB Vans
Recording interface to Digital Audio Workstation (ProTools™ or equivalent)
Fixed installations
Recording interface to Digital Audio Workstation (ProTools™ or equivalent)
AxC-AT32IO cards are fully compatible with both AVBx3 and AVBx7 Audio Toolbox for two kinds of applications
Live applications
Live concerts, live broadcast studios and OB Vans
Recording interface to Digital Audio Workstation (ProTools™ or equivalent)
Fixed installations
Recording interface to Digital Audio Workstation (ProTools™ or equivalent)
Technical Specifications
General
Size 200 mm x 100 mm x 40 mm – Format AuviTran Audio ToolBox platform cards
Power Supply +12V / +3.3V – Through AuviTran Audio ToolBox backplane
Storage: Temp/Humidity (non-condensing) -5°C to 70°C / Max 95% (non-condensing)
Operating: Temp/Humidity (non-condensing) 0°C to 50°C / 5% to 90% (non-condensing)
Connectors 4 x Optical connectors
Audio Inputs
Number of inputs 16 ADAT digital inputs routed through the AuviTran Audio ToolBox backplane from the other cards
Audio Inputs Specifications
Clock Synchro Sources All ADAT Inputs
Audio Outputs
Number of outputs 16 ADAT digital outputs routed through the AuviTran Audio ToolBox backplane from the other cards
Integration Environment
Audio ToolBox platform AxC-AT32IO is one the cards for the AuviTran Audio ToolBox platform
AVS-Monitor AVS-Monitor enables to remotely set, control and monitor an Audio ToolBox network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots
OS Supported Windows 10/8.1/8/Seven/Vista/XP for 32 or 64 bit versions
