Description

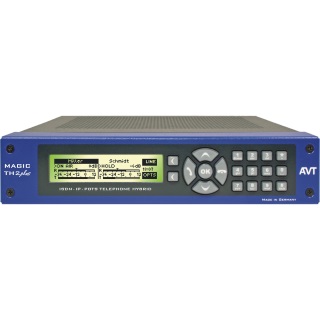

The MAGIC TH2plus Telephone Hybrid provides two POTS,an ISDN BRI (S0) and a LAN line interface, which can be used for VoIP. The system has analogue and digital Audio interfaces (configurable) and can be operated as double hybrid in all three modes (POTS, ISDN and IP).
For each caller line a separate Echo Canceller is available. The Echo Cancelling window is about 100 msec.
Operation
The operation and configuration can be done via the front keypad and the graphical display. Alternatively, an operation via the GPIO contacts and the Windows PC Software, which is included in delivery, is also possible. The software allows you to configure and control the system with a PC via LAN. Both caller lines are clearly displayed and if desired a manual level adjustment is possible. Screening information about the callers can be stored in a database. The stored caller information is immediately available when the calling number is transmitted. With the help of additional MAGIC TH2plus Software licences you can install up to two further operator or Screener workplaces.
