Description

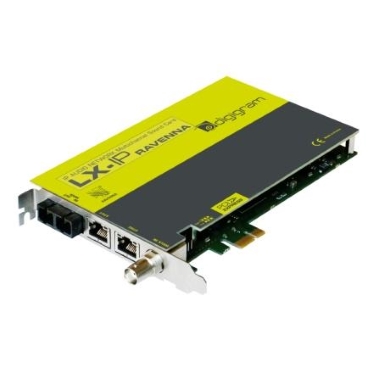

With up to 128/128 I/O, the LX-IP PCIe(R) sound card bridges professional audio software applications to the ultra-low latency, and high precision clock management of AES67 and Ravenna synchronous audio-over-IP networks, in full compliance with AES67 interoperability recommendations.
On-board optional MADI connectivity enables the seamless transition from synchronous audio to IP audio in the studio environment
The LX-IP sound card is the perfect fit for your broadcast in-house or mobile studio applications and live sound installations:
- Central facilities
- Production studios
- Distribution between studios and production
- Mobile studios / OB vans
- Connection with venue / event installations
- Live sound and fixed installations
| CONFIGURATION | |
| Bus/Format | PCI Express(R) x1 (compatible x1, x4, x8, x16 slots) |
| Size | 111.15 mm x 167.65 mm x 20 mm |
| Power requirements (+3.3V/+12V) | 0.4 A / 0.12 A |
| Operating: temp / humidity (non-condensing) | 0°C / +50°C • 5% / 90% |
| Storage: temp / humidity (non-condensing) | -5°C / +70°C • 0% / 95% |
| INPUTS AND OUTPUTS | |
| Connectors | 2 Gigabit Ethernet RJ45 ports for RAVENNA I/O (dual port or Primary / Back up mode)
1 optical connector for MADI I/O (Factory option) 1 BNC for Word Clock In / Out |
| RAVENNA I/O channels | Up to 128/128 I/O (Mono) channels at 44.1 kHz or 48 kHz (64/64 I/O on each Gigabit Ethernet interface) |
| RAVENNA packet size | From 128 down to 1 (ultra-low latency profile) audio samples per RAVENNA packet |
| AES 67 compliance | Full compliance in all respects with AES 67 |
| Supported audio payload formats | PCM16 / PCM24 / PCM32 / AM824 (PCM24+AES3 channel status) |
| PC Record/Play channels | 64/64 simultaneous Record/Play (Mono) channels to/from PC |
| MADI (Multichannels Audio Digital Interface) inputs and outputs | Optical I/O connector, 64/64 I/O (Mono) at 48 kHz sampling frequency and 32/32 I/O (Mono) at 96 kHz
(Factory option) |
| Word Clock input or output | BNC connector, Input or Output position selectable by software.
Input : TTL , impedance selectable by jumper (75 Ohms / HighZ). Output : Max 5 Vpp, 75 Ohms output impedance |
| Clock sources | PTPv2 (IEEE1588-2008) from network or internal clock or Word Clock or MADI input
Local clock eligible as GrandMaster PTP Local clock precision : better than 10 ppm |
| Sampling frequencies | From local clock: 44.1 kHz, 48 kHz and 96 kHz (MADI)
From network or Word Clock: 44.1 kHz, 48 kHz and 96 kHz (MADI) From MADI: 44.1 kHz, 48 kHz, 96 kHz |
| CONTROL & ROUTING | |
| Routing | Zero latency on-board routing matrix between RAVENNA, PC Rec/Play and optional MADI channels |
| Control | HTTP (web pages from embedded server)
EMBER+ |
| ENVIRONMENT | |
| Latency | Roud trip time down to 1.2 ms (excluding IP network) |
| Supported operating systems | Windows 10, 8 and 7 32/64bits, Windows server 2003/2008, Linux |
| Supported drivers | ASIO, WASAPI / low latency WDM DirectSound, ALSA |
