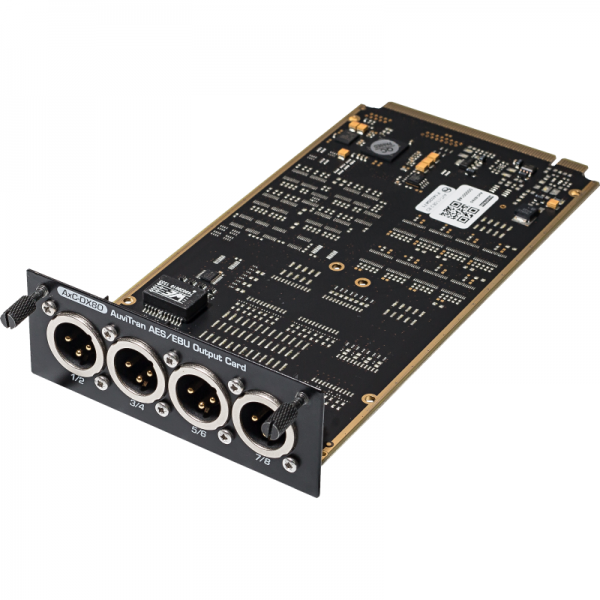

AuviTran AxC-DX80 AES/EBU Output Card

Description

AxC-DX8O card provides AES/EBU digital output interfaces to the AuviTran Audio ToolBox platform.

AxC-DX8O features four stereo AES/EBU digital outputs on four XLR connectors.

Combined with other AuviTran Audio ToolBox cards, the AXC-DX8O card offer exciting possibilities to the professional audio systems:

EtherSound – AES/EBU converter
MADI – AES/EBU converter…

Up to 6x (resp 2x) AxC-DX8O cards can be inserted into an AVBx7 (resp AVBx3) with Dante card for two kinds of applications:

Live applications
Live concerts output to AES3 Amps
Live broadcast studios and OB Vans
Fixed installations
Stadiums, concert halls
Theatres, bars, pubs, discos

Technical Specifications
General
Size 200 mm x 100 mm x 40 mm – Format AuviTran Audio ToolBox platform cards
Power Supply +12V / +3.3V – Through AuviTran Audio ToolBox backplane
Storage: Temp/Humidity (non-condensing) -5°C to 70°C / Max 95% (non-condensing)
Operating: Temp/Humidity (non-condensing) 0°C to 50°C / 5% to 90% (non-condensing)
Connectors 4x female XLR connectors for the AxC-DX8O card
AxC-DX8O – Audio Outputs
Number of outputs 4 Stereo AES/EBU digital outputs routed through the AuviTran Audio ToolBox backplane from the other cards
AxC-DX8O – Audio Outputs Specifications
Sample rate 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
A/D Resolution 24 bits
Output Impedance 110Ω
Output Specification AES Transformer balanced on XLR Male connectors (RS422 Level)
Control and monitoring Environment
AVS-Monitor AVS-Monitor enables to remotely set, control and monitor an Audio ToolBox network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots
