AuviTran AxC-AX4M Microphone Input Card

Description

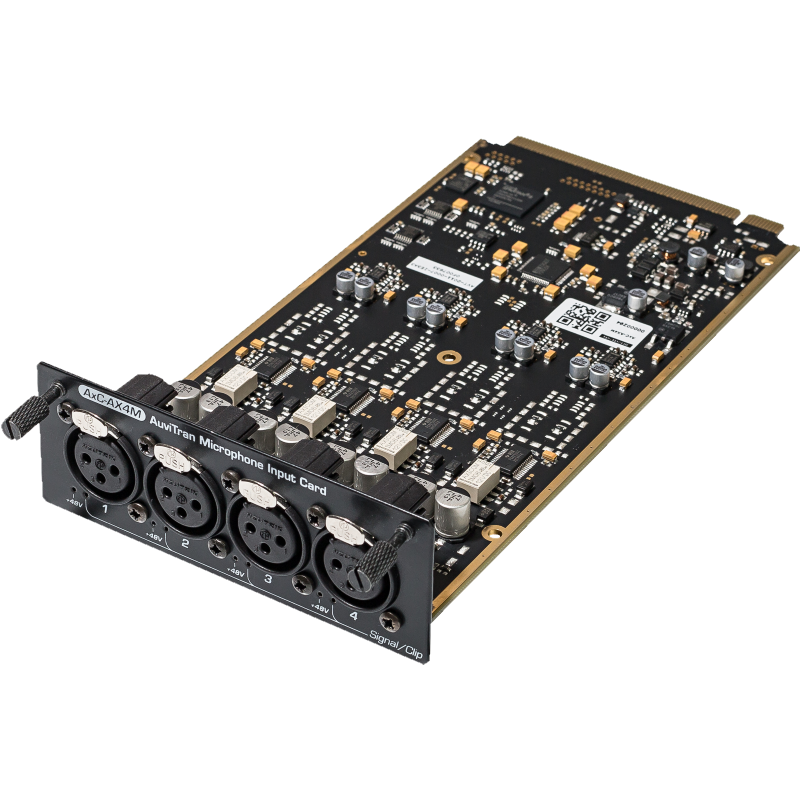

The AxC-AX4M card provides four high–end analog inputs (both line and microphone level) with professional XLR connectors for the AuviTran Audio ToolBox platform.

Featuring four high performance microphone and line pre-amplification, high class AD converter chips and excellent circuit design, the AxC-AX4M card sets a new quality/price ratio standard for professional applications.

A linear 0.5 dB step digital attenuator/gain gives access to an input sensibility from -55 dBu to +24 dBu.

+48V phantom power activation per channel, preamp value setting, attenuation/gain setting and vu-meter can be monitored and controlled individually per channel via network for a remote management from virtually anywhere.

All individual gains and +48V phantom power activation remote controls are manageable by Yamaha HA remote protocol enabling direct control and monitoring from Yamaha console/mixer.

Up to two AxC-AX4M cards can be inserted in an AVBx3-ES100 for two kinds of application:

Live applications
Live concerts and recording
Live broadcast studios and OB Vans
Recording studios…
Fixed installations
Stadiums, concert halls
Theatres, bars, pubs discos

Technical Specifications
General
Size 200 mm x 100 mm x 40 mm – Format AuviTran Audio ToolBox platform cards
Power Supply +12V / +3.3V – Through AuviTran Audio ToolBox backplane
Storage: Temp/Humidity (non-condensing) -5°C to 70°C / Max 95% (non-condensing)
Operating: Temp/Humidity (non-condensing) 0°C to 50°C / 5% to 90% (non-condensing)
Connectors 4 x female XLR connectors
Audio Inputs
Number of inputs Up to 4 analog inputs routed through the AuviTran Audio ToolBox backplane to the other cards
Audio Inputs Specifications
Sample rate 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
A/D Resolution 24 bits
Input specification Balanced analog on XLR connectors
Input maximum level +24dBu
Input phase Phase inversion configurable by software via network
Audio Inputs MIC / Line Technical Specifications
Analog Gain Range 0 to +79 dB (0.5 dB step)
Input sensibility n +24 dBu to -55 dBu
Input Impedance 2,7 kΩ (differential)
E.I.N. @ (Rs=150Ω G=+55dB) -127 dBu (fs=48KHz & BW 22KHz)
Dynamic Range > 115 dB A-weighted ( > 112.5 dB un-weighted) (fs=48KHz & BW 22KHz)
THD+N (1KHz / G=0dB or G=+25dB) < -101 dB (fs=48KHz & BW 22KHz) Frequency response 20Hz – 20kHz ( -0,3 / 0 dB) Phantom Power +48 V (individually controllable for each channel) Integration Environment Audio ToolBox platform AxC-AX4M is one the cards for the AuviTran Audio ToolBox platform AVS-ESMonitor AVS-ESMonitor enables to remotely set, control and monitor an EtherSound network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots OS Supported Windows 10/8.1/8/Seven/Vista/XP for 32 or 64 bit versions
